| Product Type： | Solenoid valves |
| Place of origin： | China |
| Model No： | GSTW-S |
| Price Terms： | FOB ,CIF ,C&F |
| Payment Terms： | T/T ,L/C ,Western union |
| Package： | Standard export packing |
| Minimum Order： | 10pcs (samples avaliable ) |
| Delivery Time： | 7-10days |
 |
|
Product Parameter:

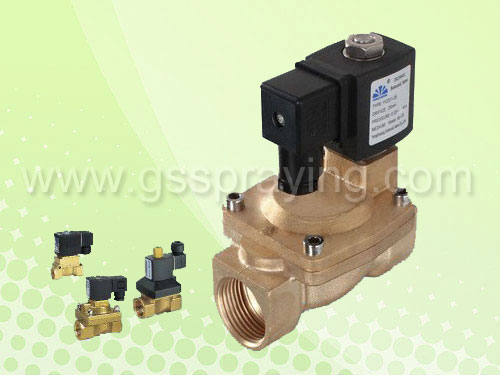

GSTW Diaphragm Pilot Operated , Normally open /closed solenoid valve :
| Features |
1.pilot operated diaphragm structure with less power comsumption for long time working 2.Applied to pressure system opened from 0.03 Mpa 3.Life span can be over 1 million times 4.Funcation:2 way on/ off solenoid valves |
| Medium | Air, water etc. |
| Temperature |
NBR: -10°C to 80 °C EPDM: -10°C to 120 °C VITON:-10°C to 150 °C |
| Pressure | 0.03-1.6Mpa |
| Port size | 1/4''-1' |
| Port thread | G.BSPT,BSP,NPT,PT |
| Orifice | 12,15,20,25mm |
| Voltage |
DC-12V,24V AC-24V,120V,240V/60HZ,110V,220V/50HZ |
| Tolerance |
±10% |
| Coils |
SA11B,9VA(AC),6W(DC) IP 65,100% ED S91B,22VA(AC),17W(DC) IP65,100% ED |
| Special coils | Latching coil:DC6-24V as requested |
| Material |
Body- brass or stainless steel Seal- NBR,EPDM,VITON Amature tube-stainless steel 304 Plunger-stainless steel430F Stop-stainless steel 430F Springs-SS304 Shading rings- stainless steel 304 |
Stock,quality test,delivery & packing:
1. have stock for small quantity (less than 50pcs)
2. quality test: 100% pressure and leakage test before packing
3. delivery: air,sea or Express depends on order quantity
4. packing: plastic bag,boxes, cartons or pallets
