| Product Type： | High pressure mist system,Cool-Mist Impeller Humidifier |
| Place of origin： | China |
| Model No： | GS-F03 |
| Price Terms： | FOB ,CIF,C&F |
| Payment Terms： | T/T,L/C,Western Union |
| Package： | Standard Export Package |
| Minimum Order： | 10pcs(samples avaliable) |
| Delivery Time： | 10-15 days after downpayment |
 |
|
Features:
2. Ceramic plunger Italy seal NSK bearing stainless steel cover,SS cover can avoid rust efficiently
4. Fog can spray at different frenquency controlled by the digital timer

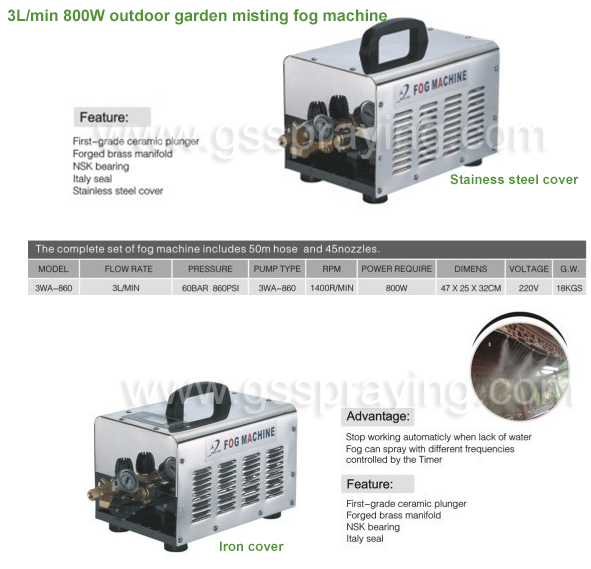

1. Pump Type: Axial Pump(2plungers)
2. Flow Rate:3L/min
3. Power: 800W, single phase(can do different voltage and rate)
4.Drop the Temperature: 4-10°C
5.Spray Effective Area: 300M2
6.Diameter of Fog: < 7μm
7.Spray Sustainable Time:12 hours
8. Motor Speed: 1400RPM
9. Tubing Size: 3/8" (9.52mm)
10.Working Pressue: 60bar
11. Accessories List: 50m hose, 45 nozzles and 46 connectors

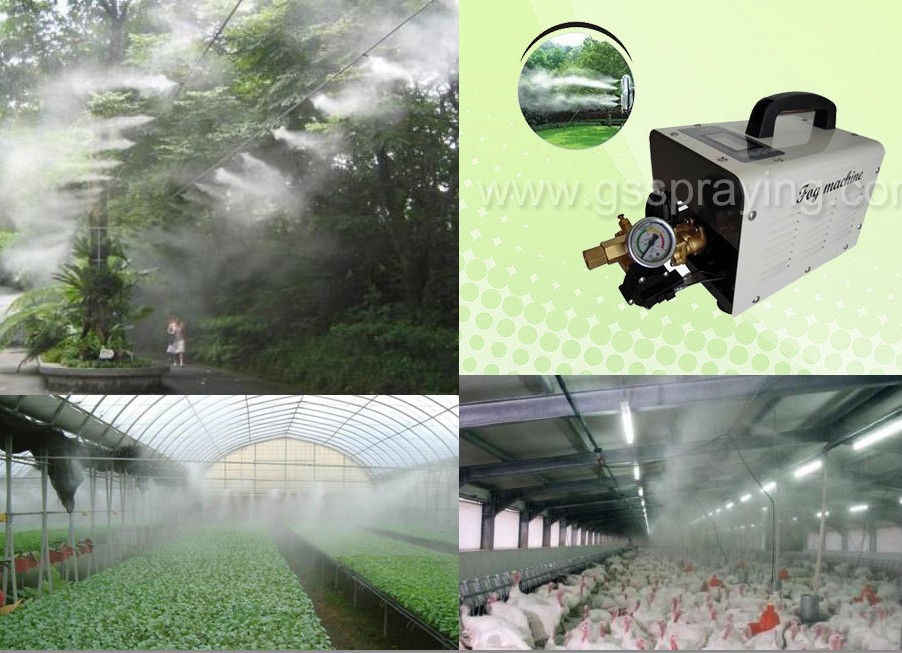

Functions:
1. Cooling
Residential cooling, outdoor cooling, commercial place cooling
2. Humidification
Industrial, agricultural and horticultural: green house, garden, livestock farming
3. Dedusting and Deodorization
Industry process, bulk powder, cement plant, foundry dust, fly ash control, waste transfer, recycling process
4. Insect Control
Please use water-soluble chemical to kill insect.
Mist system :
Except fog machine ,we can also supply all the accessories separately, such as nozzle, connectors, hose and hose cutter.
1. Fog Nozzle:
Orifice diameter: 0.1mm up to 0.5mm, usually we offer 0.15mm
Working pressure: 60bar
Body material: 304ss, brass and 316ss
Orifice material: ceramic & ss
2. 3/8 Brass Connector:
Material: brass
Nozzle thread: 10/24
Tubing Size: 3/8" (9.52mm)
3. PE Hose:
Outer diameter: 3/8"
