Metal high pressure high-efficiency car washing nozzles
| Product Type： | High pressure car washing nozzles |
| Place of origin： | China |
| Model No： | OXJ High Pressure Cleaning Nozzle |
| Price Terms： | FOB ,C&F,CIF |
| Payment Terms： | T/T;Western Union;L/C |
| Package： | Standard export package |
| Minimum Order： | 50pcs(sample available) |
| Delivery Time： | 7-10 days |
 |
|
Products Information
Products Information
OXJ High Pressure Cleaning Nozzle
Design Features
1.OXJ nozzle contains color coding projecting jacketing and carries 1/4 inch fast connecting design.
2.The jet flow angles include 0°, 15°, 25°, 40°, 65°, specially designed high pressure washing application.
3.The nozzle shell is made of high impact ADL material, along with an exit inserted with a hardening stainless or ceramic body, 65°fan shape of which is made of brass. This shell has a long wearing resistant life and accurate flow control.
4.Spray type has flat fan ,full cone with five jet angles

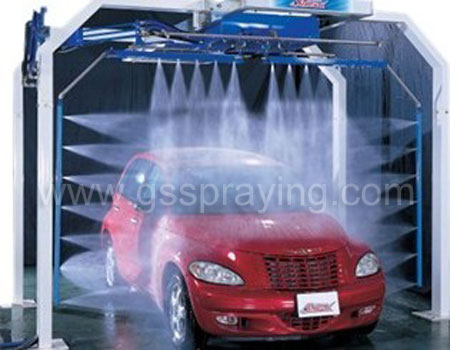

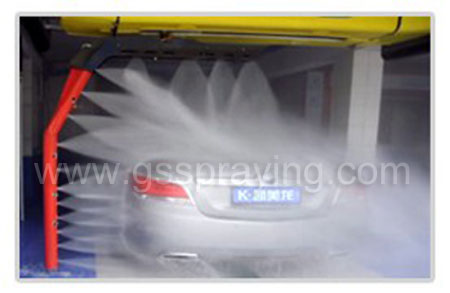

5.Mainly use high pressure car washing .
Performance date:
| Type code | 20 | 25 | 27 | 30 | 35 | 40 | 45 | |
| Theory diameter | 0.8739 | 0.977 | 1.0154 | 1.0703 | 1.156 | 1.2359 | 1.3108 | |
| Pressure | Flow | Flow | Flow | Flow | Flow | Flow | Flow | |
| Bar | PSI | Standard | Standard | Standard | Standard | Standard | Standard | Standard |
| Value | value | value | value | value | value | value | ||
| 28 | 400 | 2.39 | 2.99 | 3.23 | 3.59 | 4.19 | 4.79 | 5.39 |
| 34 | 500 | 2.68 | 3.35 | 3.61 | 4.01 | 4.68 | 5.35 | 6.02 |
| 41 | 600 | 2.93 | 3.66 | 3.96 | 4.4 | 5.13 | 5.86 | 6.6 |
| 48 | 700 | 3.17 | 3.96 | 4.28 | 4.75 | 5.54 | 6.33 | 7.13 |
| 55 | 800 | 3.39 | 4.23 | 4.57 | 5.08 | 5.92 | 6.77 | 7.62 |
| 62 | 900 | 3.59 | .4.49 | 4.85 | 5.39 | 6.28 | 7.18 | 8.08 |
| 69 | 1000 | 3.79 | 4.73 | 5.11 | 5.68 | 6.62 | 7.57 | 8.52 |
| 76 | 1100 | 3.97 | 4.96 | 5.36 | 5.95 | 6.95 | 7.94 | 8.93 |
| 83 | 1200 | 4.15 | 5.18 | 5.6 | 6.22 | 7.26 | 8.29 | 9.33 |
| 90 | 1300 | 4.32 | 5.39 | 5.83 | 6.47 | 7.55 | 8.63 | 9.71 |
| 97 | 1400 | 4.48 | 5.6 | 6.05 | 6.72 | 7.84 | 8.96 | 10.08 |
| 103 | 1500 | 4.64 | 5.79 | 6.26 | 6.95 | 8.11 | 9.27 | 10.43 |
| 110 | 1600 | 4.79 | 5.98 | 6.46 | 7.18 | 8.38 | 9.58 | 10.77 |
| 117 | 1700 | 4.94 | 6.17 | 6.66 | 7.4 | 8.64 | 9.87 | 11.1 |
| 124 | 1800 | 5.08 | 6.35 | 6.86 | 7.62 | 8.89 | 10.16 | 11.43 |
| 131 | 1900 | 5.22 | 6.52 | 7.04 | 7.83 | 9.13 | 10.43 | 11.74 |
| 138 | 2000 | 5.35 | 6.69 | 7.23 | 8.03 | 9.37 | 10.71 | 12.04 |
| 145 | 2100 | 5.48 | 6.86 | 7.4 | 8.23 | 9.6 | 10.97 | 12.34 |
| 152 | 2200 | 5.61 | 7.02 | 7.58 | 8.42 | 9.82 | 11.23 | 12.63 |
| 159 | 2300 | 5.74 | 7.18 | 7.75 | 8.61 | 10.05 | 11.48 | 12.92 |
| 166 | 2400 | 5.86 | 7.33 | 7.92 | 8.8 | 10.26 | 11.73 | 13.19 |
| 172 | 2500 | 5.98 | 7.48 | 8.08 | 8.98 | 10.47 | 11.97 | 13.47 |
