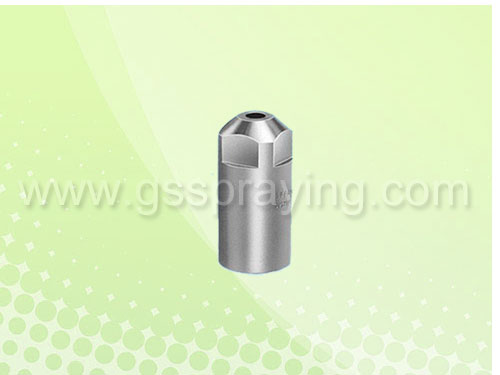

HH Narrow angle full cone spray nozzle
Product Type: H series narrow angle full cone spray nozzle
Place of origin: China
Model No: GS-HH
Price Terms: FOB ,CIF ,C&F
Payment Terms: T/T,L/C,Western Union
Package: Standard export package
Minimum Order: 50pcs
Delivery Time: 7-10days
Inquire Online
Products Information



Product Information:

1. Narrow spray ,spray angle:15gree ,30degree

2. Spray pattern: Full cone

3. Material: Stainless Steel 303; Stainless Steel 304; Stainless Stell 316; and Brass

4. Thread size: 1/8" to 2" BSPT or NPT (male thread and female thread)

5. Working Pressure: from 0.5bar to Dozens of bar; Usually, nozzles will spray perfectly under 3bar or larger pressure.

6..Narrow angle nozzle with fine manufacturing process, to achieve a precise specifications, to ensure the best performance.Novel blade design and large flow channel and excellent control characteristics of the jet spray distribution uniformity,

7.G series Jet Nozzle has removable cap and vane

8.Connection : Adjustable fitting; Split-Eyelet



Design Features:

1.Solid cone-shaped spray pattern with round impact area.

2.Uniform distribution over a wide range of flow rates and pressures.

3. Medium- to large-sized drops.

4. Unique vane design with large flow passages provides superior control and uniform distribution.

5.Removable caps and vanes for easy inspection and cleaning on most models.

6.Removable vane has location marks for proper positioning after cleaning.

7.Set screws in some models secure the vane in the nozzle to prevent dislocation caused by vibration



Performance Parameter Table:



Spray Pattern:



G15/G30 Series:

               GS-HHF                                             GS-HH



Applications:

Washing/rinsing

Gas scrubbing, washing, cooling

Foam break-up, aeration, deaeration

Fire suppression/prevention

Dust control

Creation/dispersion of drops in chemical reaction processing

Cooling coke,primary metals and other materials
